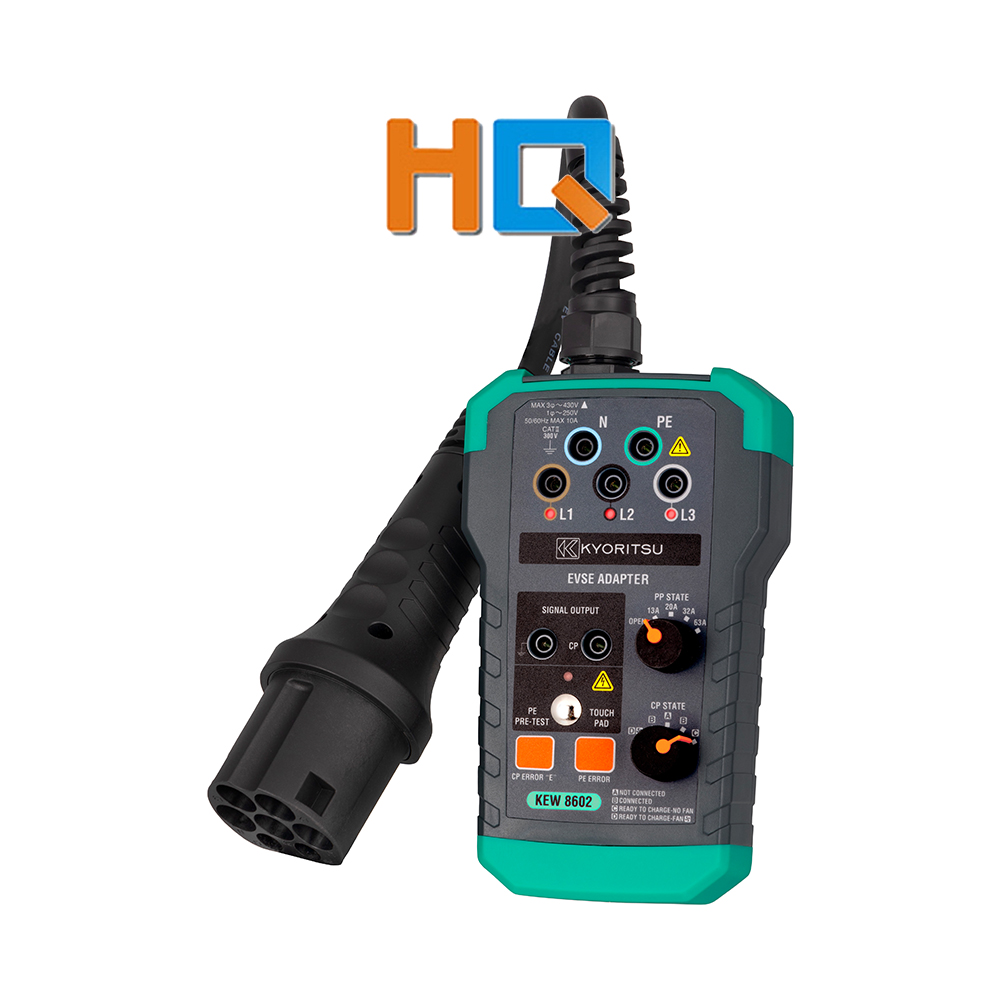

Bộ kiểm tra trạm sạc xe điện EVSE Kyoritsu 8602
Liên hệ(CHƯA BAO GỒM 10% VAT)
| Plug | IEC 62196-2 Type 2 | |
|---|---|---|
| Rated voltage | AC 250V Max.(Single-phase) AC 430V Max.(Three-phase) |
|
| Rated Frequency | 50/60Hz | |
| Rated voltage/ current of mains socket |
AC 10A/250V ※8602(EU):Type E socket 8602(UK):Type BF socket 8602(AU):Type O socket |
|
| Fuse rating | AC 10A/250V, Ø5×20mm | |
| Operating temperature and humidity range |
0 – 40ºC, relative humidity 80 % or less (no condensation) | |
| Storage temperature and humidity range |
-10 – 50ºC, relative humidity 80 % or less (no condensation) | |
| Applicable standards | IEC 61010-1 CAT Ⅱ 300V, IEC 61010-2-030, IEC 61851-1, IEC 60529 (IP40) |
|
| Altitude | 2000m or less | |
| Cable length | Approx. 250mm | |
| Dimension | Unit: 172(L) x 105(W) x 57(D) mm Plug part: 175(L) x 60(W) x 53(D) mm |
|
| Weight | Approx. 840g | |
| Accessories | 8930(Fuse[10A/250V]) 9202 (Carrying case) Instruction manual |
|
| Optional Accessories | 8603 (TYPE1 to TYPE2 conversion adapter) | |
